Architecture

The system is composed of a UI Extension for user interaction, a ReAct Agent for intelligent decision-making, and an MCP Server that acts as the intermediary between the agent and the Rancher API.

Components

ReAct Agent

The ReAct Agent is the orchestrator of the system’s intelligence. It leverages a Large Language Model (LLM) as its reasoning engine, while the agent itself provides the structure, coordination, and secure execution of actions.

  • LLM (Reasoning Engine):

    • Interprets user inputs expressed in natural language.

    • Performs the reasoning: breaks down complex requests into smaller steps.

    • Decides what should happen next (keep reasoning vs. take action).

    • Synthesizes outputs from tools into clear, human-readable responses.

  • Agent (Orchestrator):

    • Wraps the LLM with the ReAct (Reason + Act).

    • Decides when to let the LLM keep reasoning or when to act on its instructions.

    • Calls external tools (via the MCP Server) as directed by the LLM.

    • Ensures secure interactions by passing the user’s Rancher token to the MCP server for authentication and authorization.

MCP Server

The MCP Server acts as a secure, controlled gateway between the ReAct Agent and the Rancher and Kubernetes APIs. Its functions include:

  • Exposing Tools: It provides a set of well-defined, safe tools (API endpoints) that the ReAct Agent can call. These tools abstract away the complexity of direct Rancher/Kubernetes API interactions.

  • Interaction with Rancher: It translates tool calls from the agent into the appropriate API requests to the Rancher management server, retrieving or modifying resources as needed.

UI Extension

The UI Extension provides the user-facing chat interface within the Rancher dashboard. It is designed to be a seamless part of the Rancher experience and is responsible for:

  • User Input: It captures user queries and sends them to the ReAct Agent.

  • Displaying Responses: It receives responses from the ReAct Agent and presents them in a chat-like format.

How It Works (Flow)

  1. User Request → Agent → LLM: The user submits a natural language query through the UI Extension.

  2. LLM Reasoning: The LLM interprets the request, reasons about the problem, and proposes a plan.

  3. Agent Acting: If the plan requires external operations, the agent calls the appropriate MCP Server tools.

  4. LLM Response Formulation: The LLM takes the tool outputs and crafts a coherent, human-readable response.

  5. Response → User: The answer is returned to the user through the UI Extension.

graph TD subgraph "A. User Interaction" User[User / Analyst / DevOps] end subgraph "B. Rancher AI Assistant (Processing)" Agent(Agent) LLM(LLM local or online) MCPServer(MCP Server) end subgraph "C. Infrastructure" Kubernetes(Clusters) end %% Step 1: User sends intent User -- "1. Query " --> Agent %% Step 2 & 3: Initial Reasoning Loop Agent -- "2. Tool Planning Request" --> LLM LLM -- "3. Action Plan (e.g., list_pods tool)" --> Agent %% Step 4: Action Execution Agent -- "4. Execute Tool via MCP" --> MCPServer %% Step 5 & 6: Cluster Interaction MCPServer -- "5. Secure Action " --> Kubernetes Kubernetes -- "6. Raw Results / Status" --> MCPServer %% Step 7: Raw results back to Agent MCPServer -- "7. Raw Tool Output" --> Agent %% Step 8 & 9: Final Interpretation Loop (Crucial step) Agent -- "8. Interpret Raw Output" --> LLM LLM -- "9. Formatted Final Answer" --> Agent %% Step 10: Final Response to User Agent -- "10. Final Conversational Response" --> User %% Styles style User fill:#e0f2f7,stroke:#1e88e5,stroke-width:2px style Agent fill:#d4edda,stroke:#28a745,stroke-width:2px style LLM fill:#fff3cd,stroke:#ffc107,stroke-width:2px style MCPServer fill:#cce5ff,stroke:#007bff,stroke-width:2px style Kubernetes fill:#f8d7da,stroke:#dc3545,stroke-width:2px

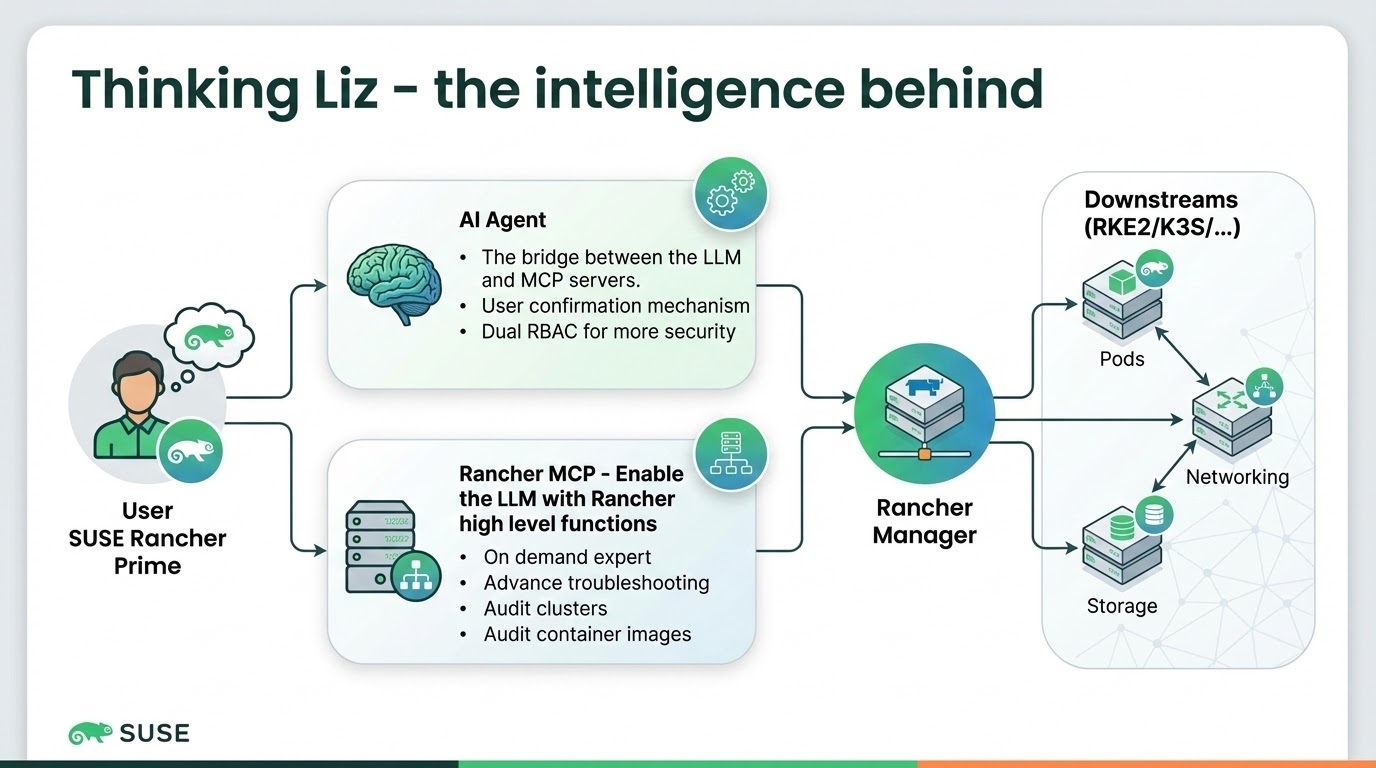

An alternative image for the architecture is also shown:

An alternative image for architecture.
